Based on NORSOK l005 standard, Haokun's A105 compact flange is suitable for use in harsh sealing environment conditions with high thermal expansion or fluid cyclic load strength, such as riser, single point mooring system, manifold, Christmas tree, subsea pipeline, heat exchanger and other pipeline systems in various process industries.
• Advantage of HAOKUN A105 compact flange
Save space
Compared with ANSI flange, the weight is saved by 70% ~ 80%
Double independent seal, safer
Positive sealing mode
Integral sealing system (internal and external)
Wider design temperature and pressure range
• Working principle of A105 compact flange

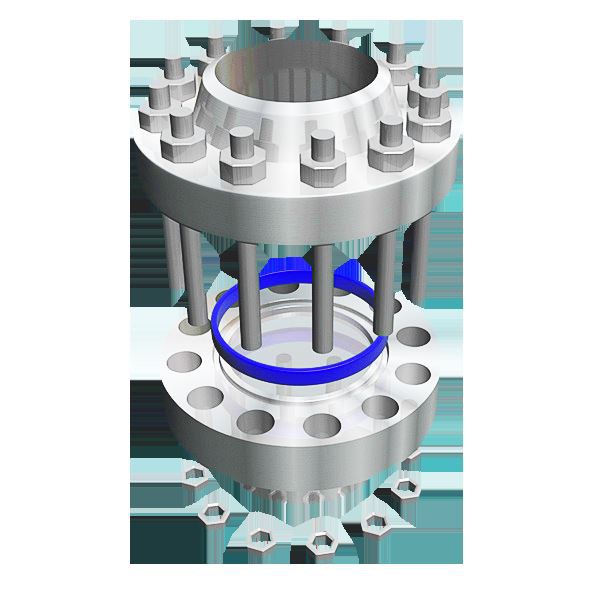

The design principle of A105 compact flange is a double sealing system with independent flange sealing surface. The pressure at the root of wedge-shaped flange surface caused by bolt preload forms the first seal; The main seal is IX seal ring, and the sealing force mainly comes from the elastic energy of the seal ring under its own stress state. If the seal at the root of the wedge flange edge leaks, the pressure from the inside expands to the outer diameter, which strengthens the sealing effect.
• Size and pressure rating
Size 1 / 2 "~ 48", pressure rating 150# to 2500#
For larger sizes and higher pressure levels, please consult the factory.
• Material Science
ASTM A105, A350 LF2, LF6, A694 F52~F70, AISI 4130, AISI 8630 A182 F316/316L, F51, F53, F55, Inconel 625, Incoloy 825.
Please consult the factory for other materials
• Shim
Gasket, the axial force is applied on the conical surface of the metal sealing ring and converted into radial sealing force. With the preload of the bolt loaded to the outer edge of the whole flange, the wedge-shaped flange sealing surface and the conical surface of the sealing ring fit closely with the groove conical surface, and most of the bolt preload is converted into the pressure at the root of the wedge-shaped flange sealing surface.
• Design and verification
Design calculation services can be provided according to the methods in ASME Section VIII, parts 1, 2 and 3. At the same time, we can also provide analysis and design verification services for ANSYS certified engineers.
